Product information

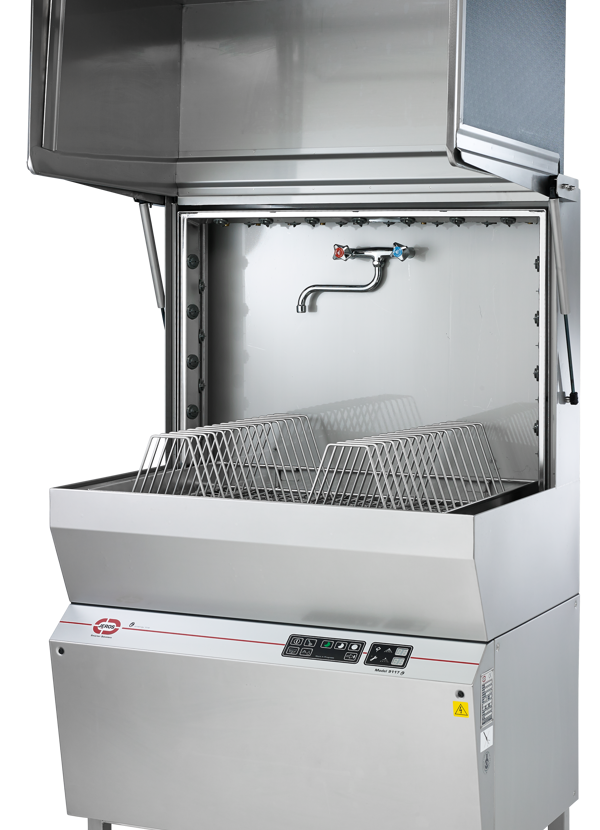

Model 9117
The compact power machine with 360 degrees of hot water
Highlights for 9117:
- Hygienic machine design
- Self-cleaning "Duo Micro" Filter system
- Energy saving, up to 25%
- Environment-friendly "Eco Wash"
- Higher/Larger wash volume is an option
- New user-friendly control panel
- Auto-Off function
Capacities, dimensions and equipment are listed under Technical Specifications.
Capacity
| Cycle times | 3+3+6 min |

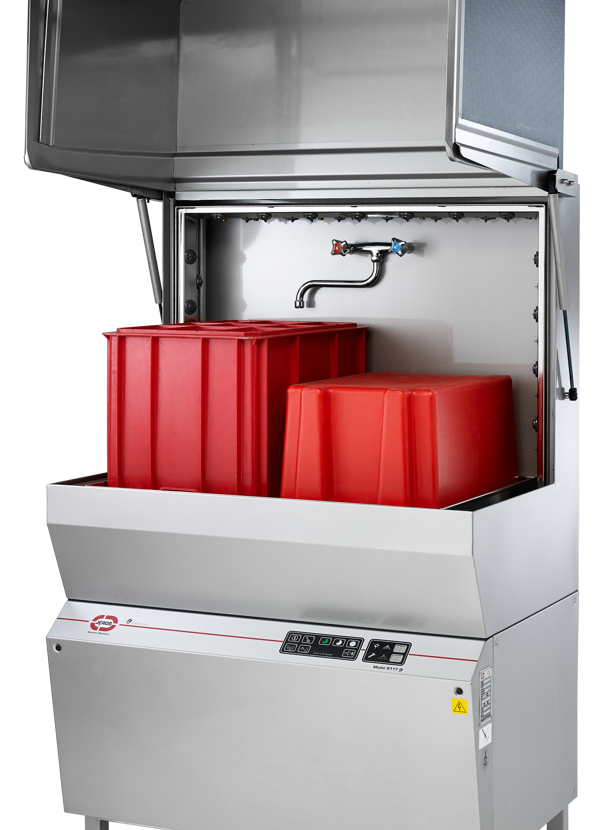

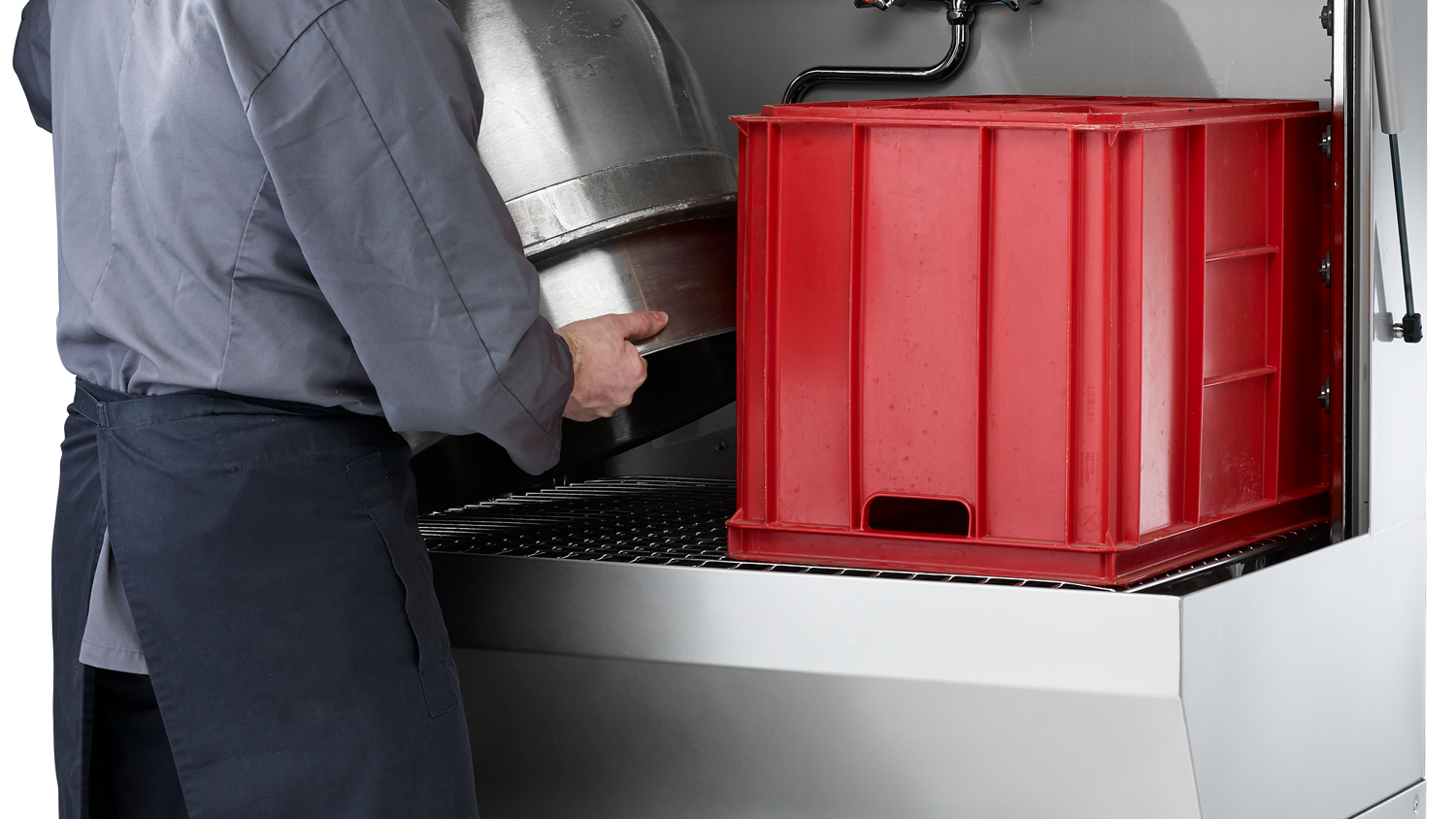

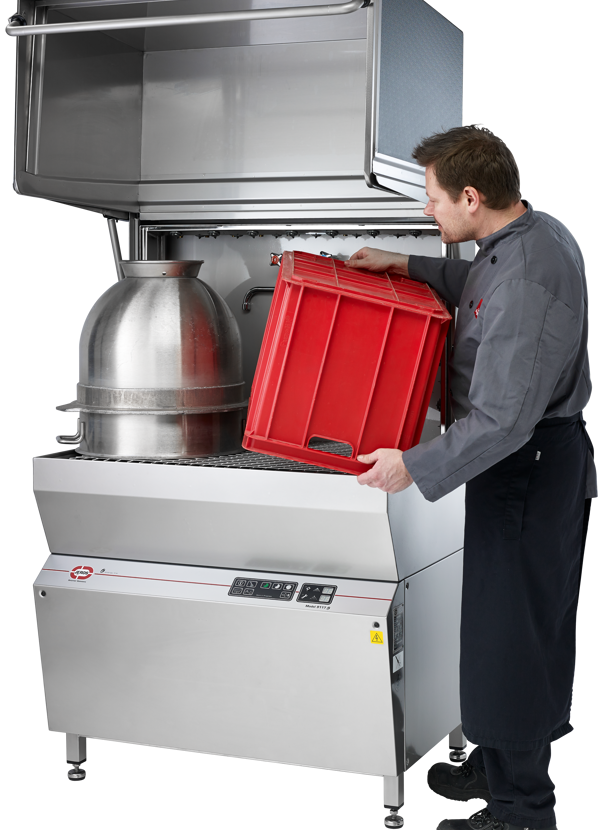

| Euronorm crates 400 × 600 | 2 pcs. |
| Plates 600 × 400 | 30 pcs. |
| Plates 600 × 460 | 15 pcs. |
| Plates 600 × 800 | 15 pcs. |
| Gastronorm trays 500 × 500 | 1 pcs. |
| 40 L tube bowl H 457 × ø 514 | 1 pcs. |
| 60 L bowl H 511 × ø 575 | 1 pcs. |
| 80 L bowl H 515 × ø 645 | 1 pcs. |
Electrical
| Voltage | 3N-50Hz-400v-PE |
| Total power | 12 kW |
| Fuse | 25 A |
| Pump power | 2 kW |
| Heating element, wash tank | 4.5 kW |
| Heating element, rinse tank | 7.5 kW |
| Rinse pump, motor | 0.45 kW |
| Motor protection | Yes |
| Wash pump capacity | 600 |
Water and steam
| Wash temperature | 58 °C |
| Rinse temperature | 85 °C |
| Wash tank | 64 l |
| Rinse tank | 25 l |
| Wash pressure | 0.9 - 1.2 bar |
| Rinse pressure | 1.1 bar |
| Water consumption per wash | 8 l |
Installation
| Max. power / main fuses | 9.5kW/16A |
| Heating elements | 1 x 6.0 kW + 1x2 kW |
| Power cable (standard) | 5 x 2.5” x 2500mm |
| Water connection, dimension | 1/2” RG |
| Water connection, pressure | 1.5—6 dyn bar |
| Water connection, temperature | Ca 56° |
| Drain dimension | 40mm diameter |
| Recommended exhaust capacity | 350 m3/h |
| Noise level | 70 dB(A) |
Equipment
| Eco Wash | Yes |
| Duo Micro Filter | Yes |
| Insulated lid, wash and rinse tank | Yes |
Dimensions and weight
| Width | 1085 mm |
| Depth | 855 mm |
| Height | 1631 mm |
| Height, hood open | 2100 mm |
| Wash area (W × H × D) | 830 x 645 x 635 mm |
Packaging
| Gross weight | 190 kg |
